Home > Products > Agricultural machinery > Harvesting machines > Rice combine harvester

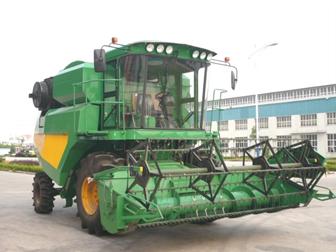

Rice combine harvester
1.Model 4FQ2
Main Specifications
| Item Name | Specifications |
Matched power(kw) |
48(64HP) |
feed quantity(kg/s) |
2 |
cutting width(mm) |
2000 |
total percentage of loss(%) |
rice≤3.0 |
percentage of trash content (%) |
rice≤2.0 |
percentage of damage (%) |
rice≤1.5 |
dimension(mm)(length*width*height) |
5000*2700*3000 |
structure mass(kg) |
2900 |
2. Model 4FQ3
Main Specifications
|
Item Name |
Specifications |
Matched power(kw) |
55(74HP) |
feed quantity(kg/s) |
3 |
cutting width(mm) |
2580 |
total percentage of loss(%) |
rice≤3.0 |
percentage of trash content(%) |
rice≤2.0 |
percentage of damage (%) |
rice≤1.5 |
dimension(mm)(length*width*height) |
5700*2950*2990 |
structure mass(kg) |
3100 |
3. Model 4FQ6
Main Specifications
| Item Name | Specifications |
feed quantity(kg/s) |
6(rice ) |
5(wheat ) |
|
cutting width(mm) |
3660(rice / wheat: ) |
4570(soya) |
|
min ground clearance(mm) |
450 |
structure type |
wheel type self-propelled whole-feeding |
Matched power(kw) |
110(158HP) |
dimension(mm)(length*width*height) |
7700*4030*3800 |
structure mass(kg) |
8700 |
total percentage of loss (%) |
rice≤3.0 |
percentage of trash content (%) |
rice≤2.0 |
percentage of damage (%) |
rice≤1.5 |
fuel tank capacity(L) |
240 |
hydraulic tank capacity(L) |
24 |
Optional : Corn/maize stripper platform and its stripper unit
The most internationally advanced large arc stripper board + four blade knife opposed stem pulling roller stripper device are adopted for the 4YG6 corn stripper platform and its stripper unit. This unit has the characteristics of high stripper efficiency, power saving, small damage on corn fringes, small seed loss and good adaptability on different raw spacings and different varieties. Corn stripper platform is a very complicated farming machine with many rotating parts, strong operating loads and adverse working environment.
Technical Parameters：
Ear loss ratio (%): ≤3
Seed loss ratio (%): ≤1
Seed damage ratio (%): ≤1
Harvesting rows: 6/7

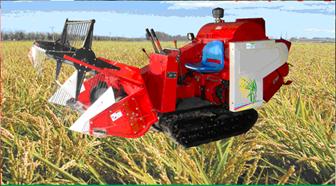

4. Model 4GF-1.5
- ♦ Double blowers
- ♦ Double screens
- ♦ Threshing & cleaning two times
- ♦ Big tank
- ♦ Easy to operate
Main specifications:
| Harvesting Width(m) | 1.5 |
Feeding rate (Kg/s) |
1.2 |
Total loss rate |
≤1.2% (wheat) |
≤3% (Rice) |
|
Broken Rate |
≤1.5% (wheat) |
≤2% (Rice) |
|
Impurity Rate |
≤2% |
Work efficiency (ha./h) |
～0.26 |
Total Weight (Kg) |
1700 |
